Gallery of Plots - 2D Axes


PSI-Plot and ProStat support over 20 commonly used axis modes for making plots with a professional appearance. These modes include linear scale (normal linear, exponential linear, 10 based, date, day, month, text, etc), semi-log, log-log, log(log), decibel (dB), BER (Bit Error Ratio), probability, probit, and logit. For each given mode, different axis attributes allow you to design your axis in great detail. In addition, PSI-Plot also supports special coordinate systems, such as Smith, Nichols, polar, and ternary.

Sample plots

Axis modes (linear scale)

Axis modes (special scale)

Axis attributes

Sample Plots

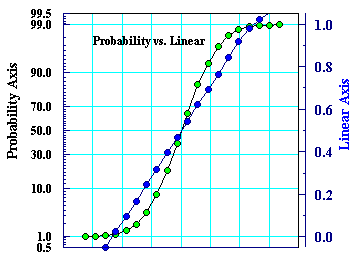

Probability vs. Linear

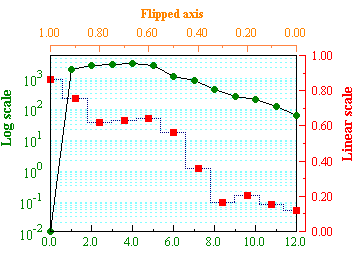

Log vs. Linear



Axis break



Smith chart

smith chart

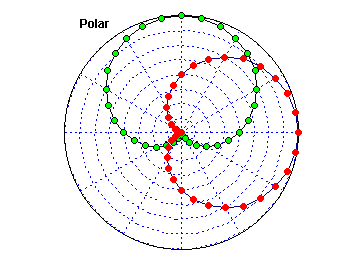

Polar chart



Ternary plot

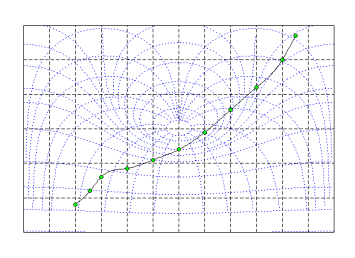

Nichols chart

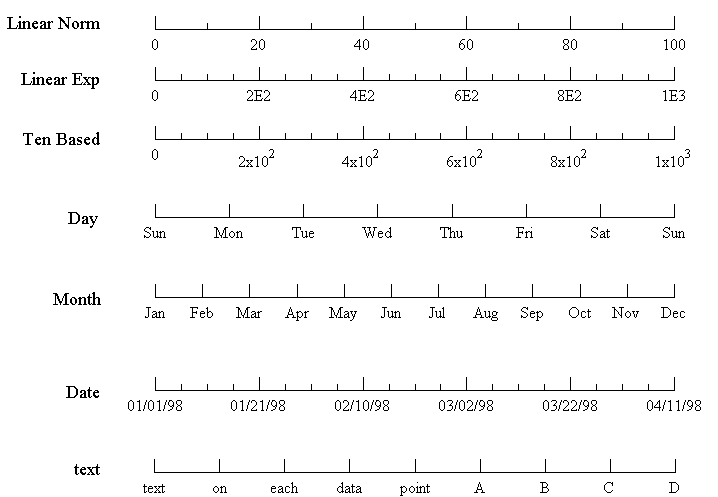

Axis modes: linear scale

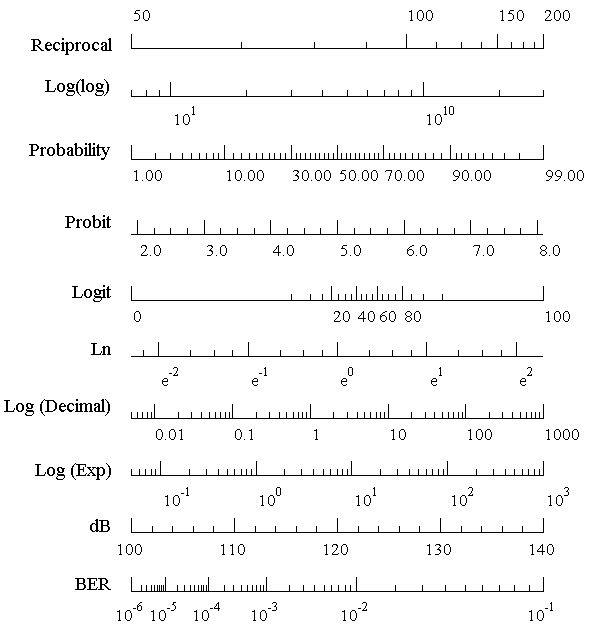

Axis modes: special scale

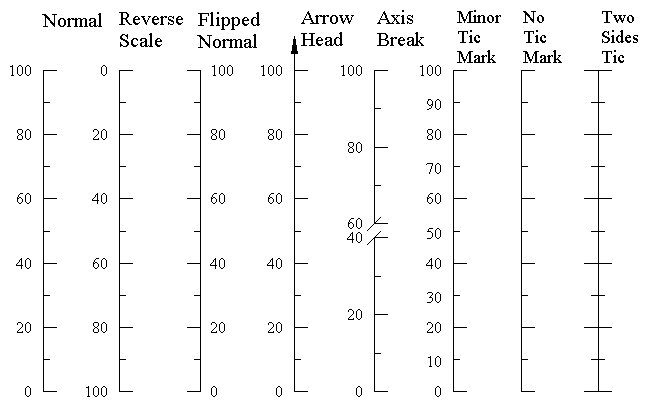

Axis attributes
